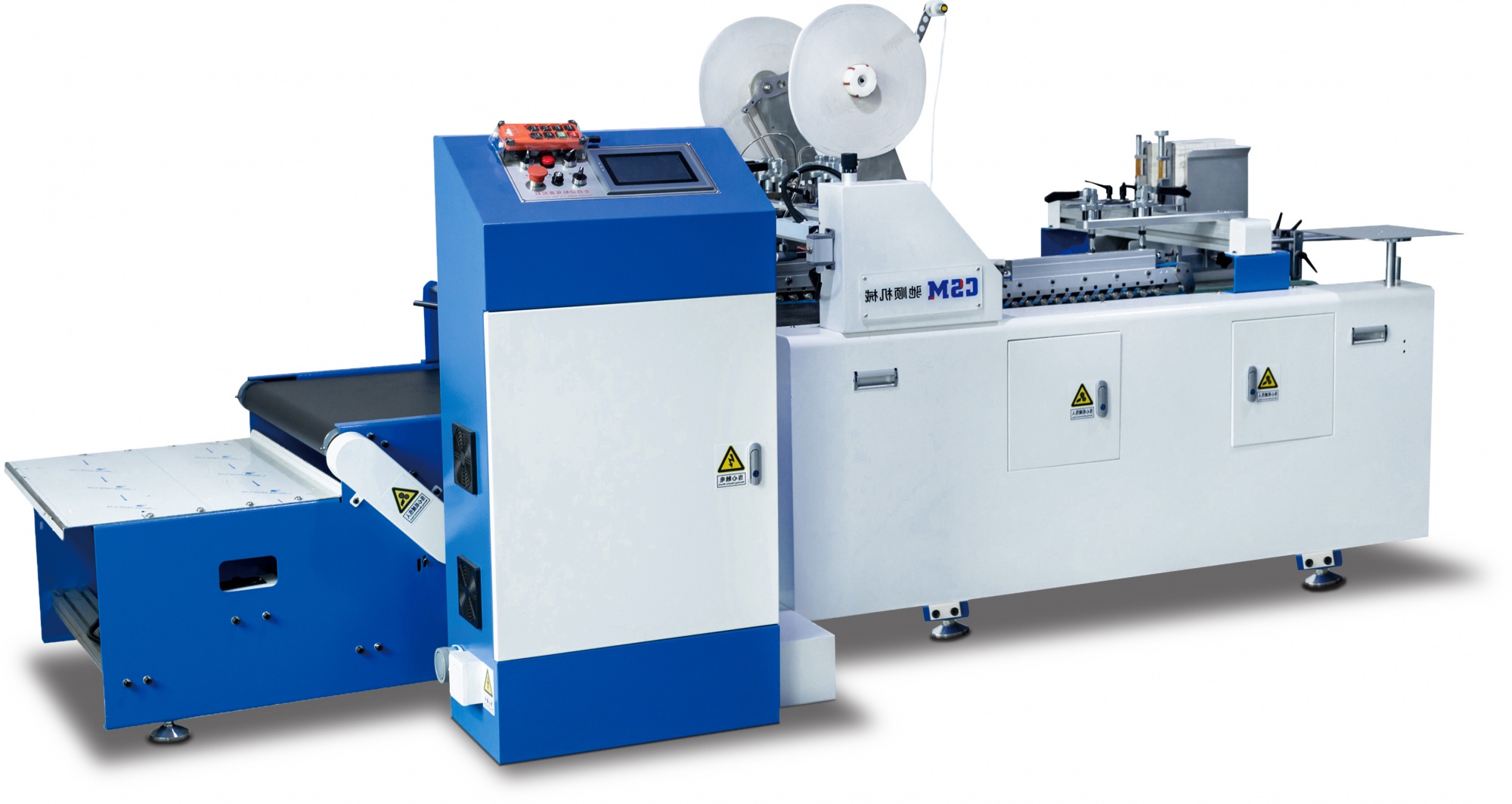

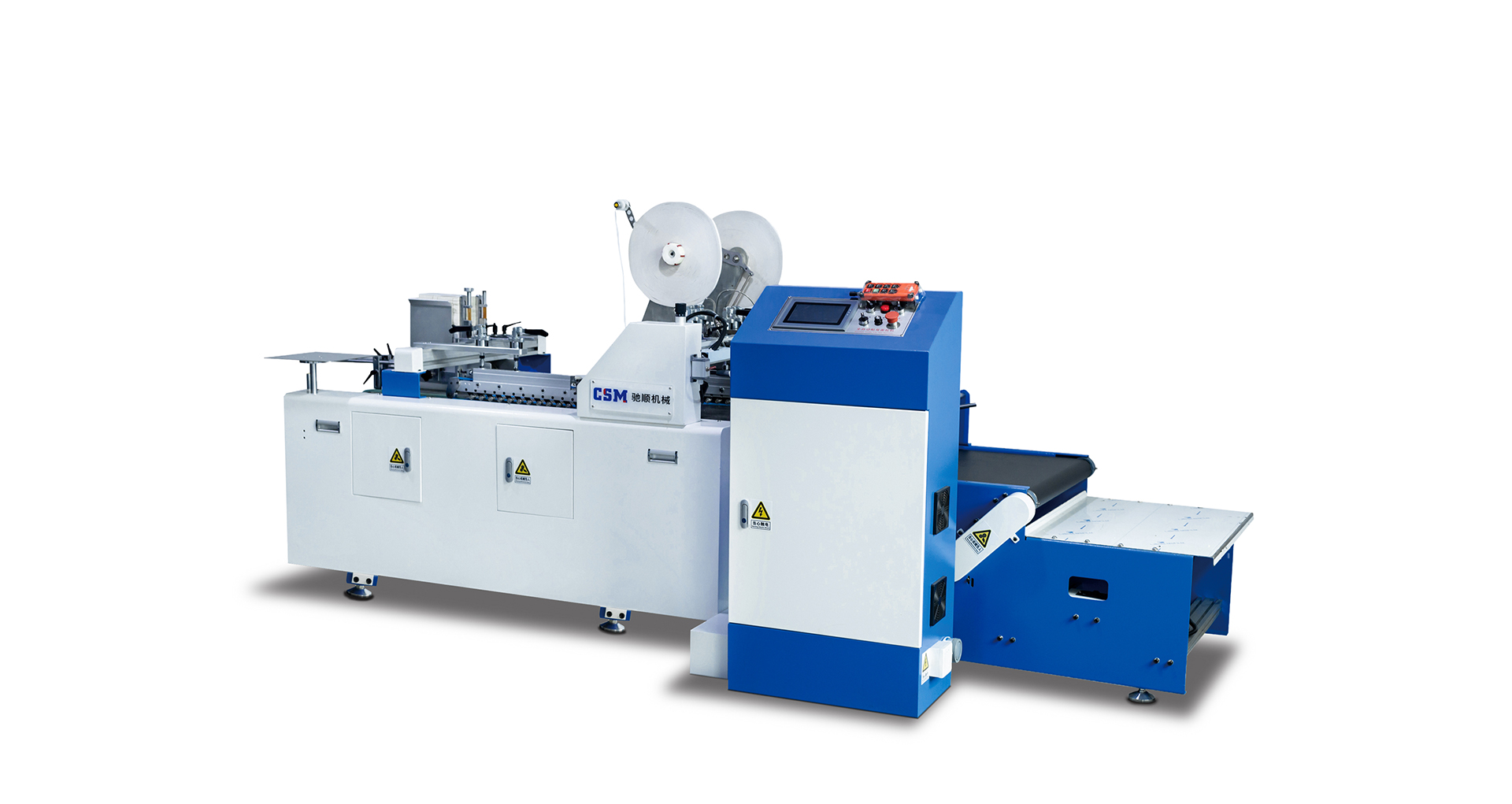

AUTOMATIC THIN PAPER DOUBLE SIDE TAPE APPLICATOR CS-650C

”Stability” and “usability” are the main features to distinguish of our machines and other similar machines. CS-C series apply to thick and thin paper, such as waist seal, cigarette lining, wine bar, temporary license plate, paper bag etc.

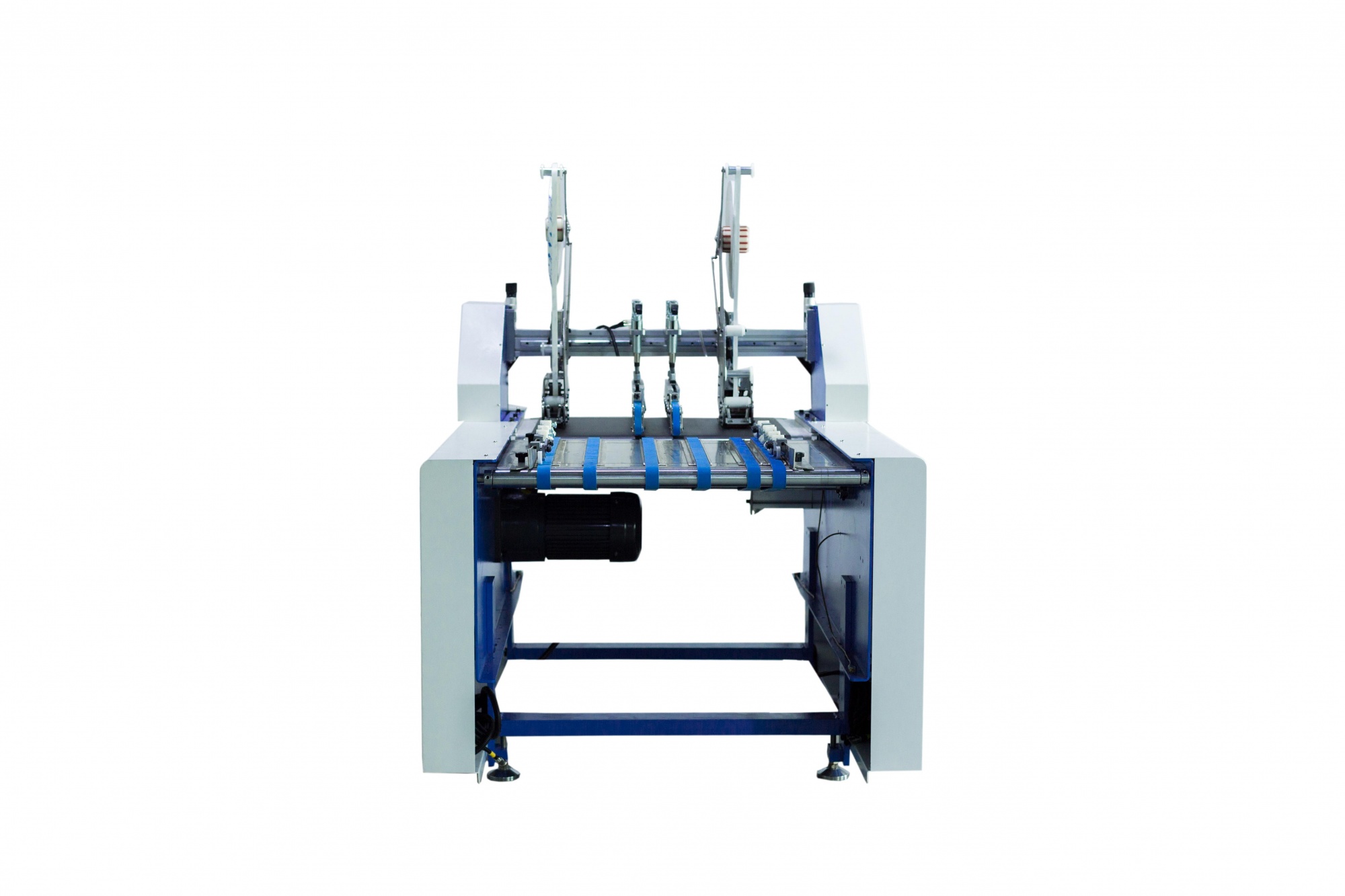

Feeder
Thin paper down drawing feeding apply to 180 g/㎡ paper.

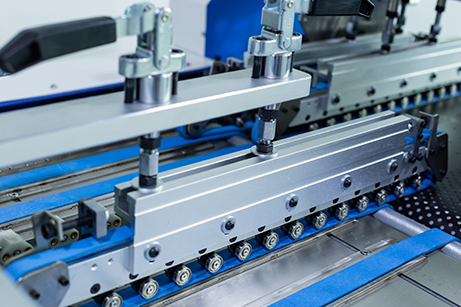

Calibration
Thin paper special use to make sure products' precision.

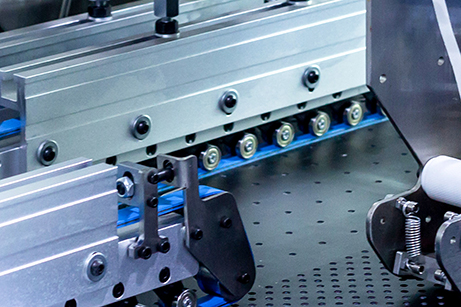

Suction platform
The stable vacuum suction platform with suction belt and high quality steel make sure the machine's stability in longtime running.

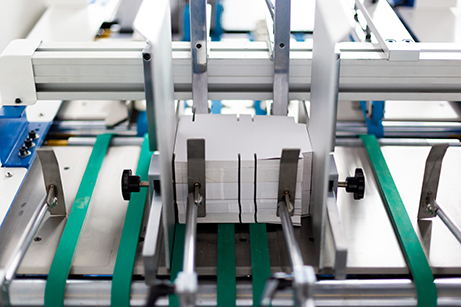

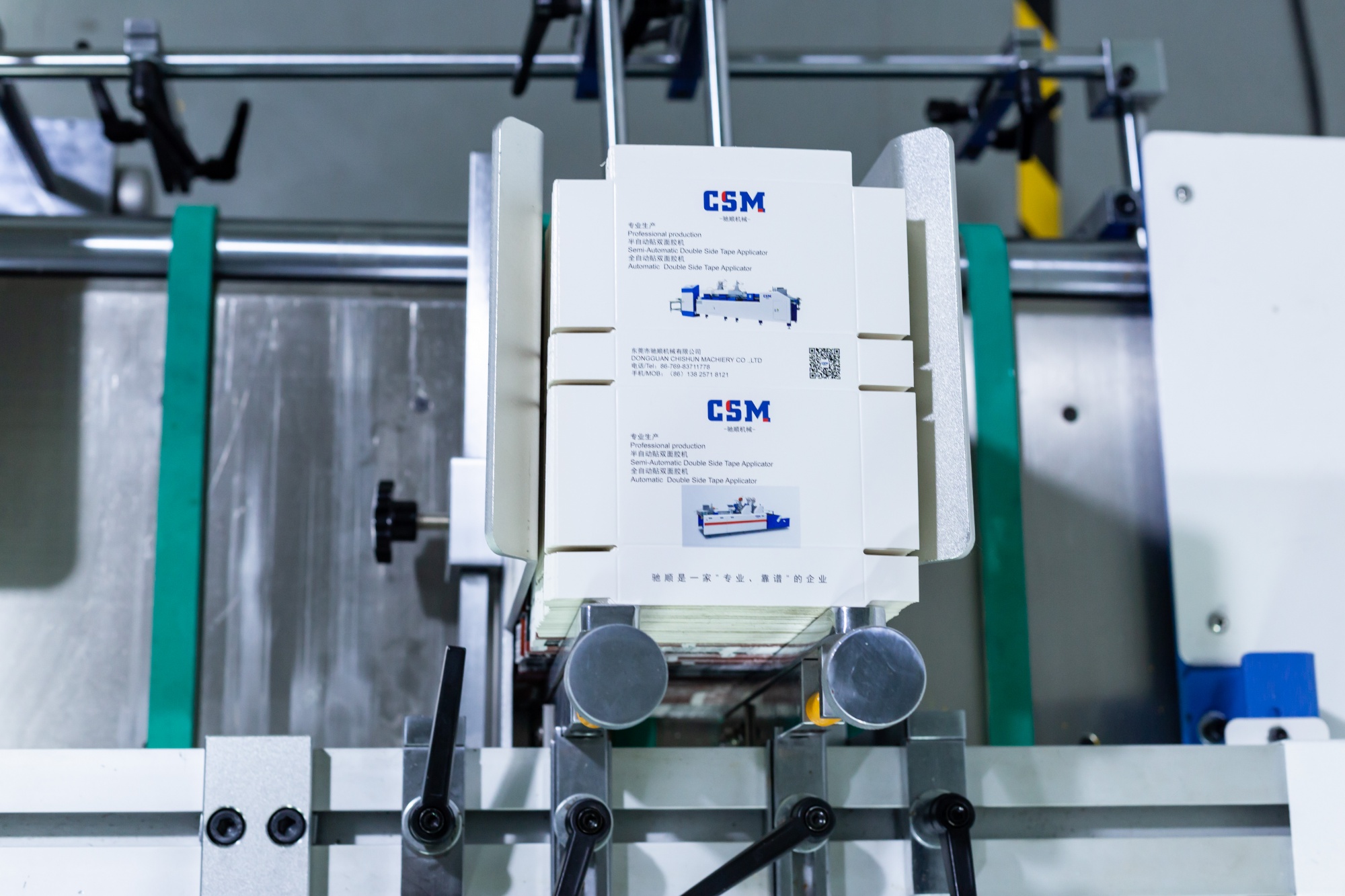

Collection
Scale-type collection with counting system simplify the collection.

AUTOMATIC THIN PAPER DOUBLE SIDE TAPE APPLICATOR Product Features:

Automatic Thin Paper Double Side Tape Applicator Detailed parameters：

Model	CS-650C	CS-850C	CS-1050C
Material	Over 80g/㎡ art paper, cardboard, 3-layers makeup corrugated board
Min paper size	140mm×80mm	140mm×80mm	140mm×80mm
Max paper size	650mm×650mm	850mm×850mm	1050mm×1050mm
Work width	650mm	850mm	1050mm
Max speed	90m/min	90m/min	90m/min
Tape width	5-40mm	5-40mm	5-40mm
Total power	4.5KW (380V AC 3φ 50Hz)	4.5KW (380V AC 3φ 50Hz)	4.5KW (380V AC 3φ 50Hz)
Weight	Approx. 1100KG	Approx. 1200KG	Approx. 1300KG

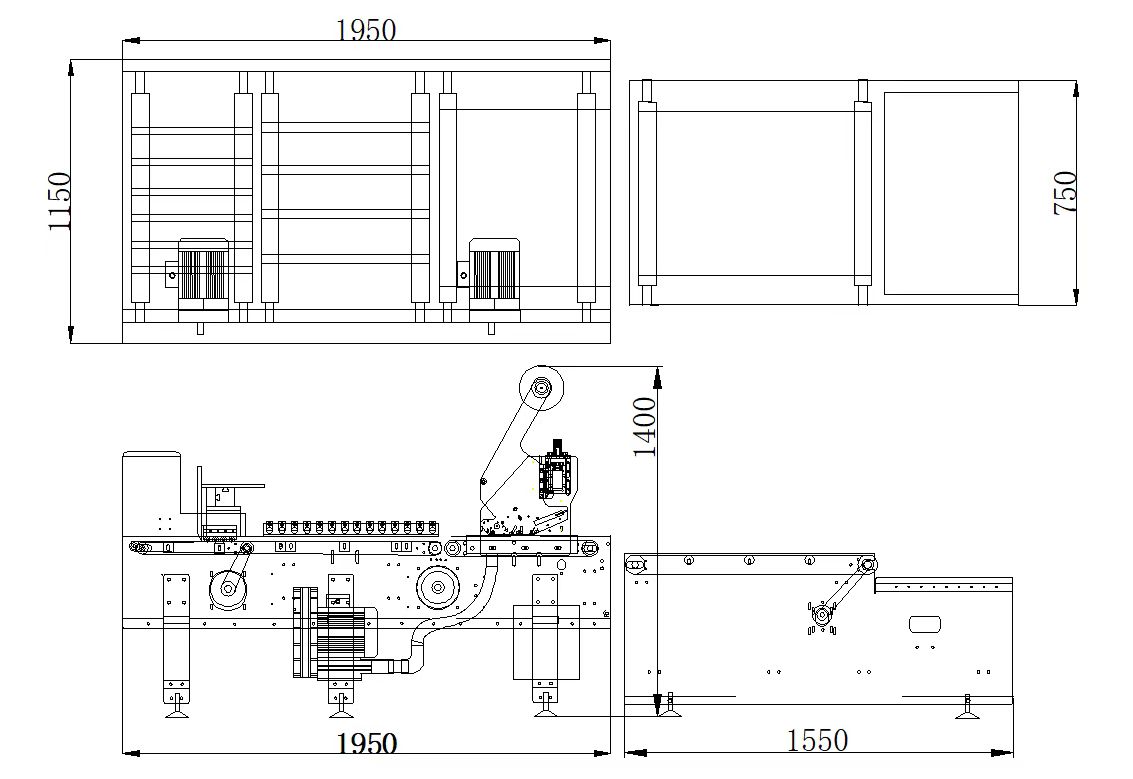

Machine size	3350×1150×1200mm	3350×1350×1200mm	3350×1550×1200mm
