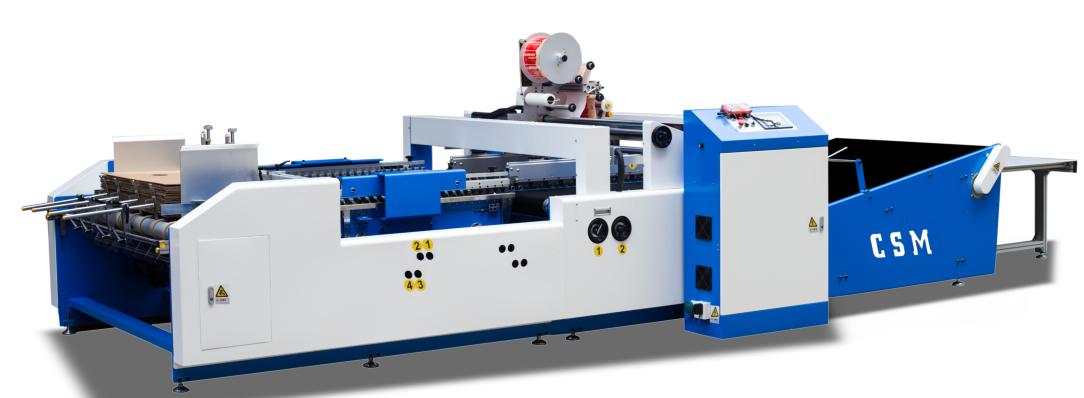

AUTOMATIC HIGH-SPEED LABELING APPLICATOR MACHINE

At present,in response to the gap in labeling heavy cartons and cardboard in the market,as a high-quality double side tape applicator manufacturer,we have successfully launched the ST series high-speed labeling applicator mchine.The equipment has fast speed and high accuracy,and has been highly recognized by well-known users both domestically and internationally.It is the best solution for labeling external packaging boxes of huosehold appliances such as refrigeratetors,TVs,washing machines and

Friction Belt Feeder
Special system makes the feeding belt be adjusted individually and easily.Independent vibration motor system enhance the feeding quality.Feeding knife and flap on left and right can be adjusted up and down as one set which can shorten the changing time.
Calibration Correction Device
Independent orientation,one side as the base to calibration the box direction which makes the tape sticking precisely.The roller design make the transport more stable.The upper presser and under board can be adjusted according to the products' demand.this can keep the precision of sticking.individual motor driving makes the machine running stably.
Label Applicator
Brand-new design concept is to achieve high efficiency and labeling accurately.Humanized design shaking handle is able to quickly adjust the labeling position.
Controller Box
The whole machine adopts well-know brand control compenents and famous products,which are safe and stable.
Conveyor
Humanization design makes workers more easier in collection.

AUTOMATIC HIGH-SPEED LABELING APPLICATOR MACHINE Product Features:

AUTOMATIC HIGH-SPEED LABELING APPLICATOR MACHINE Product Parameter:

Model	ST-1100	ST-1600	ST-2400
Material	Over 300 g/㎡ cardboard, corrugated board
Min. open blank	250mm×250mm	250mm×250mm	250mm×250mm
Max. open blank	1100×1100mm	1600mm×1100mm	2400mm×2000mm
Working width	1100mm	1600mm	2400mm
Speed	70m/min	70m/min	70m/min
Tape width	10-220mm	10-220mm	10-220mm
Power required	5.5KW (380V AC 3φ 50Hz)	5.5KW (380V AC 3φ 50Hz)	7.5KW (380V AC 3φ 50Hz)
Weight	Approx. 2000KG	Approx. 2500KG	Approx. 3500KG

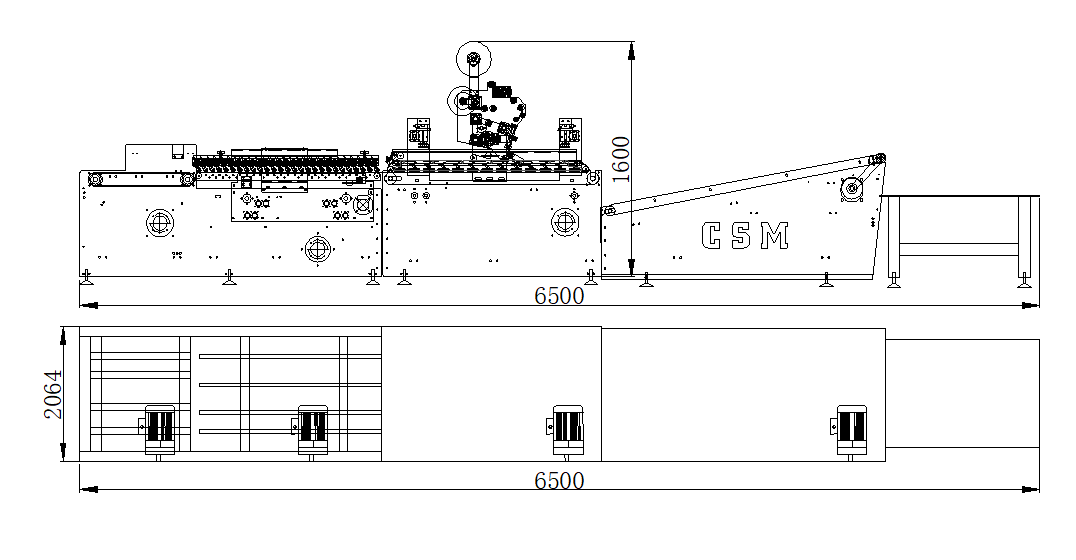

Size(LxWxH)	5800×1700×1450mm	6200×2200×1450mm	7200×3000×1450mm
