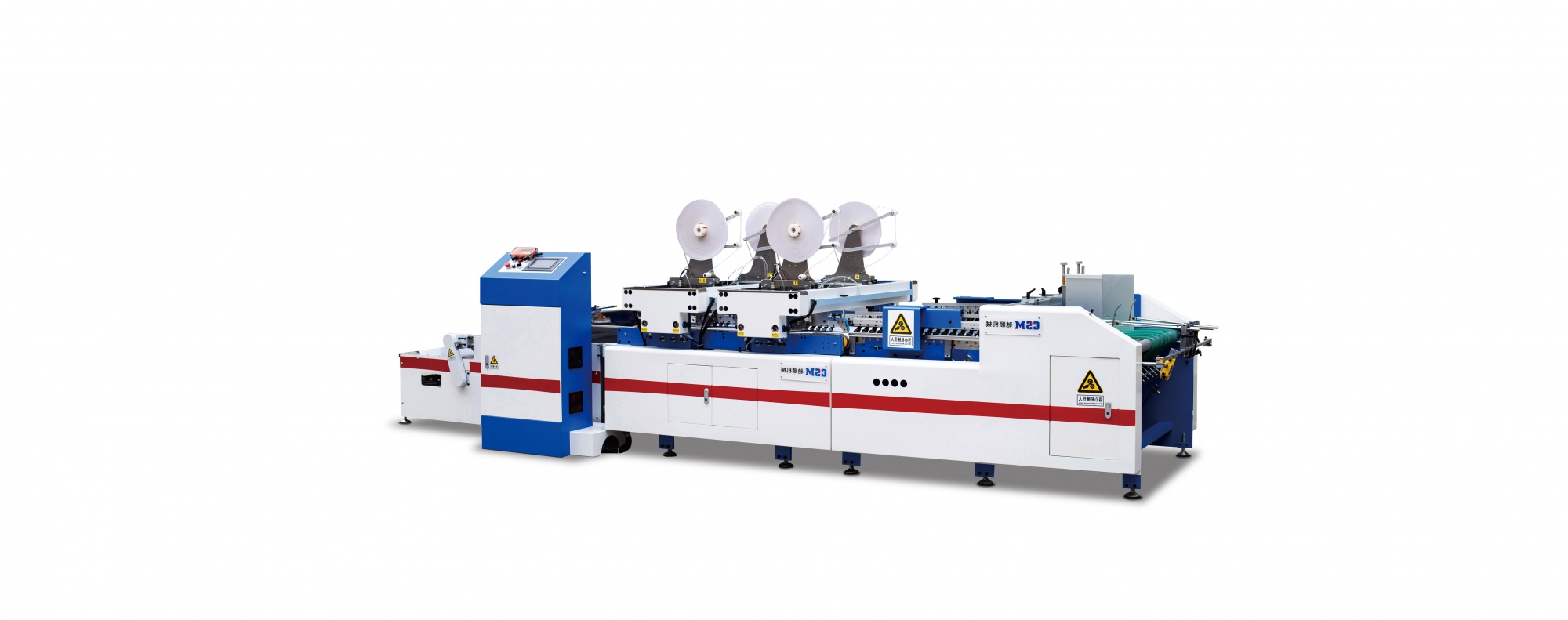

AUTOMATIC HIGH SPEED DOUBLE SIDE TAPE APPLICATOR GS-850TC IV

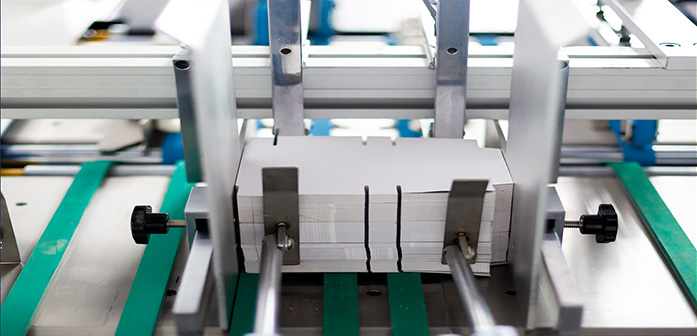

Friction Belt Feeder
Special system makes the feeding belt be adjusted individually and easily. Independent vibration motor system enhances the feeding quality. Feeding knife and flap on left and right can be adjusted up and down as one set which can shorten the changing time.

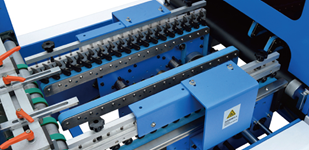

Cailbration Correction Device
Independent orientation, one side as the base to calibrate the box direction which makes the tape sticking precisely. Four boards designation makes the transport more stable. The upper presser and under board can be adjusted according to the products' demand. This can keep the precise of sticking. Individual motor driving makes the machine running stably.
Tape Applicator
Newest design and concept, humanization design all make sure the precise of double side tape pasting.

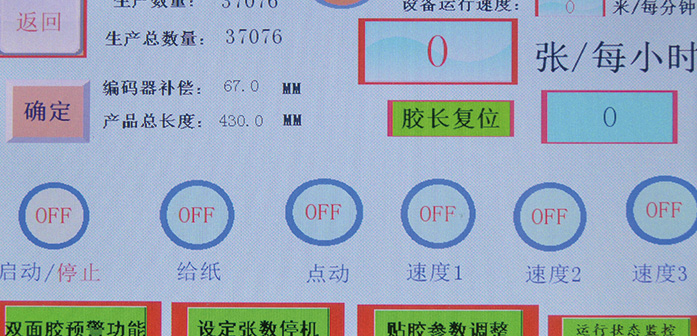

Control Panel
High level and dedicated controller is special for Double Side Tape Applicator. Easy to understand and operate. Prefect the accuracy of double side tape sticking.
Conveyor Section
The import 2mm thickness belt is soft enough for protecting products from pressing damage. Stack collection structure perfects the products quality. These is a products counting option.

AUTOMATIC HIGH SPEED DOUBLE SIDE TAPE APPLICATOR Product Features:

Automatic Double Side Tape Applicators are from German technology and design. This machine is developed special for high-end cardboard, color boxes and cartons. Automatic feeding and calibration section make this machine more efficient and more precision. It applies to tag, label, envelope, online shopping box, oackage of IT products, paper bags etc. Except the efficient and precision features, it can freely set up the double side tape length and sections you want to cut. Nearly, the sales of this machine have huge leaps at domestic and abroad. With the good quality and highly appreciated from customers, the machine is long term sale our Europe and America. This machine is the most ideal equipment for double side tape sticking.

AUTOMATIC HIGH SPEED DOUBLE SIDE TAPE APPLICATOR Detailed parameters：

Model	GS 850-TC IV	GS 1050-TC IV
Material：	Over 200g/㎡ cardboard, plastic board, corrugated board/E-B-C wave.
Min paper size：	140 mm x 100 mm	140 mm x 100 mm
Max paper size：	850 mm x 850 mm	1050 mm x 1050 mm
Work width：	850 mm	1050 mm
Max speed：	90m/min	90m/min
Tape width：	5 – 40 mm	5 – 40 mm
Precision：	±1.5mm	±1.5mm
Total power：	3.2 KW(380V AC 3φ 50Hz)	3.2 KW(380V AC 3φ 50Hz)
Weight：	Approx. 1700KG	Approx. 1900KG
*Machine Size(LWH)：*	5300×1400×1200mm	5300×1600×1200mm
