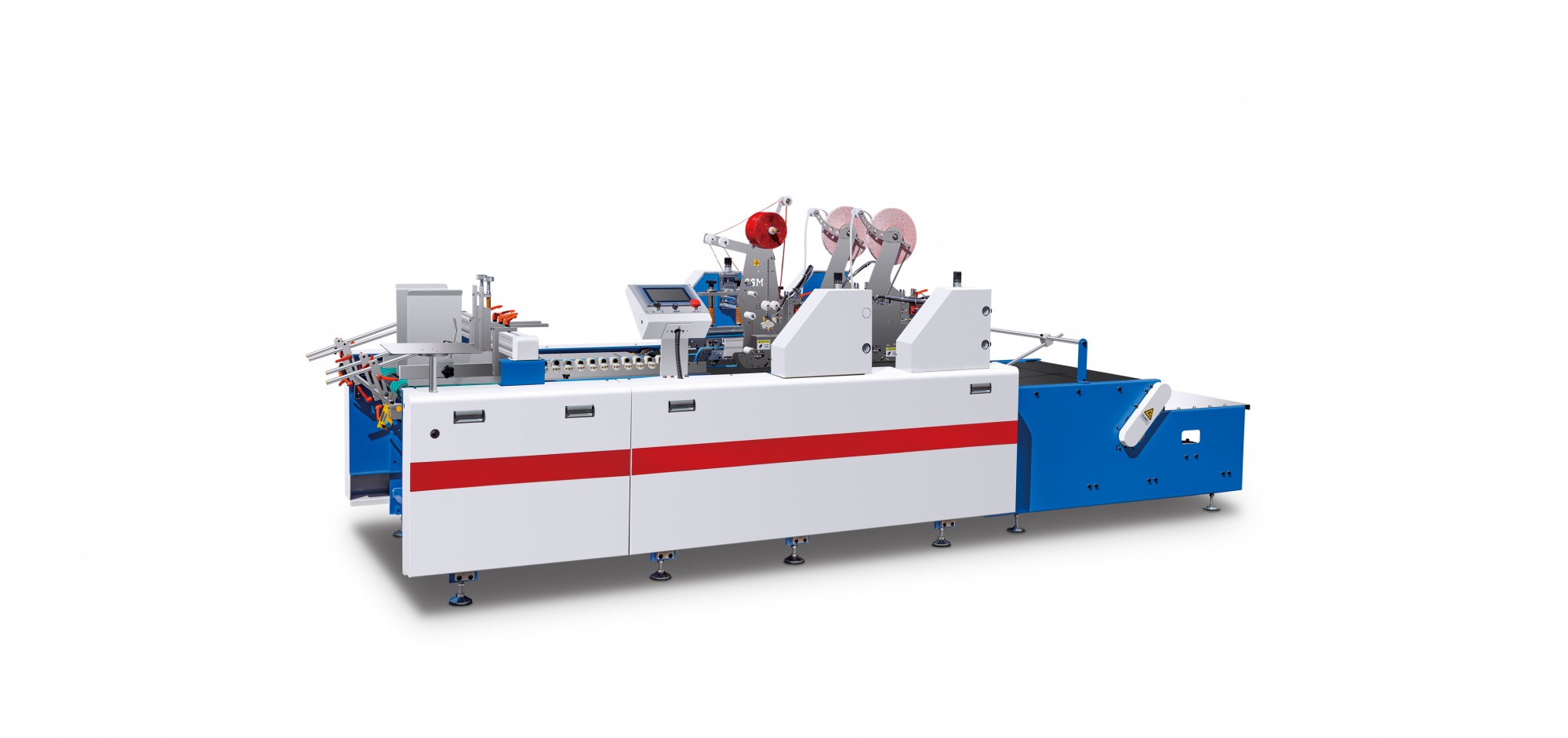

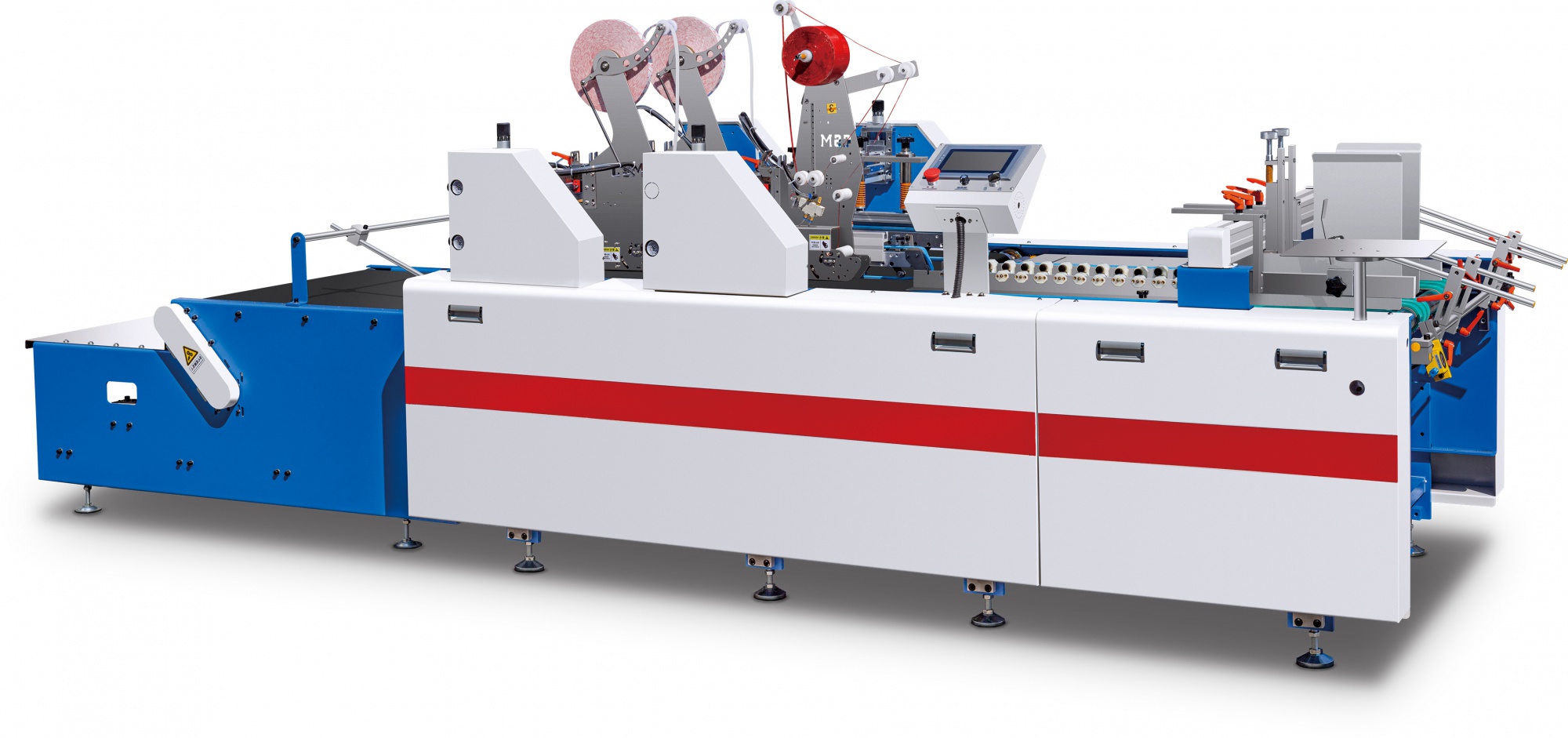

AUTOMATIC DOUBLE SIDE TAPE APPLICATOR CS-650B

CS series Automatic Double Side Tape Applicator is a multi-function machine. It's designed in light weight. It can stick double side tape or tearing stirp on cards, posts, CD/DVD boxes, presentation file bags, envelopes, tags, phone boxes etc. With the vacuum transport system, there is enough space for inkjet system and feeder etc, and easy to operate.

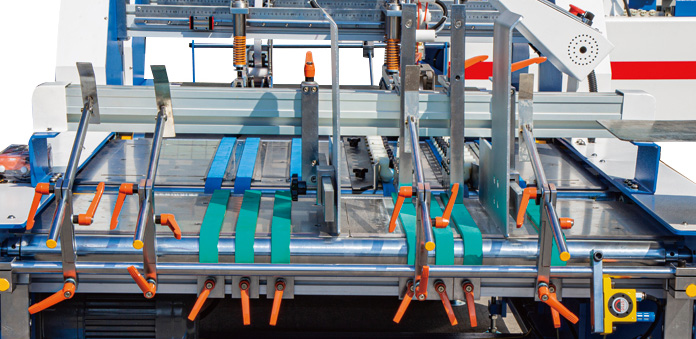

Friction Belt Feeder
Special system makes the feeding belt be adjusted individually and easily. Independent vibration motor system enhances the feeding quality. Feeding knife and flap on left and right can be adjusted up and down as one set which can shorten the changing time.

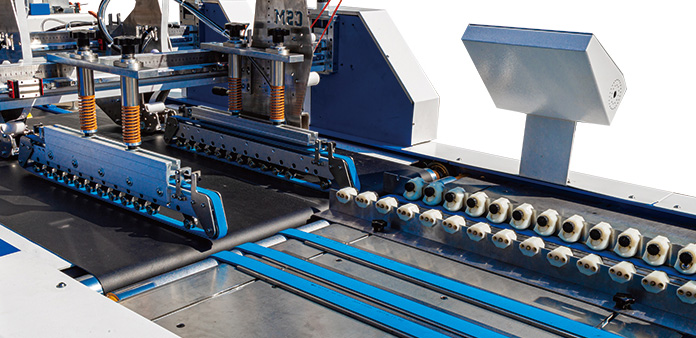

Calibration Correction Device
This part just follows the folding machine tachnical with new calibration part. Keep one box side as the base and ensure the products in the same line when running.

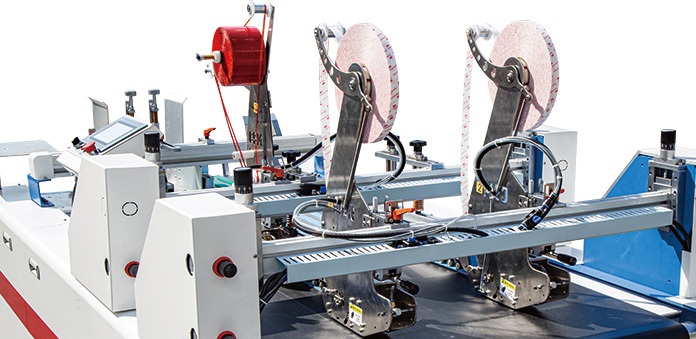

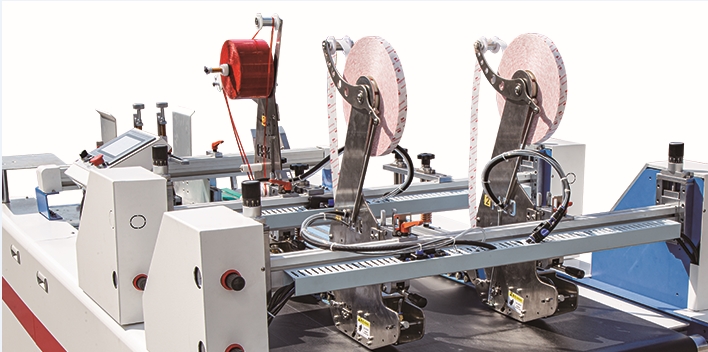

Tape Applicator
Sticking table use length platform and deliver the products on conveyor belt. Equipped with the special mounting bracket, and it is very convenient to adjust by the straight tracker.

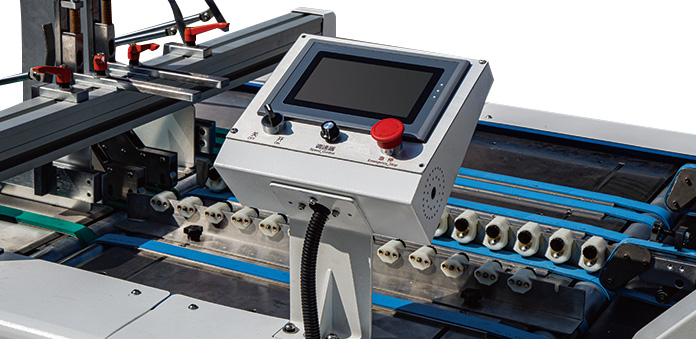

Double Side Tape Control System
The screen can show all the information. This can make the parameter setting and operating more easily and conveniently. Position tracking uses optical fiber technology which makes it more precise and function stable.

AUTOMATIC DOUBLE SIDE TAPE APPLICATOR Product Features:

Automatic double-sided tape applicator Detailed parameters：

Model	CS-650B	CS-850B
Material	Over 200 g/㎡ card board
Min paper size	140mm×100mm	140mm×100mm
Max paper size	700mm×700mm	900mm×900mm
Work width	700mm	900mm
Max speed	90 m/min	90 m/min
Tape width	5-40mm	5-40mm
Total power	4.2 KW (380V AC 3φ 50HZ)	4.2 KW (380V AC 3φ 50HZ)
Weight	Approx. 1400KG	Approx. 1600KG

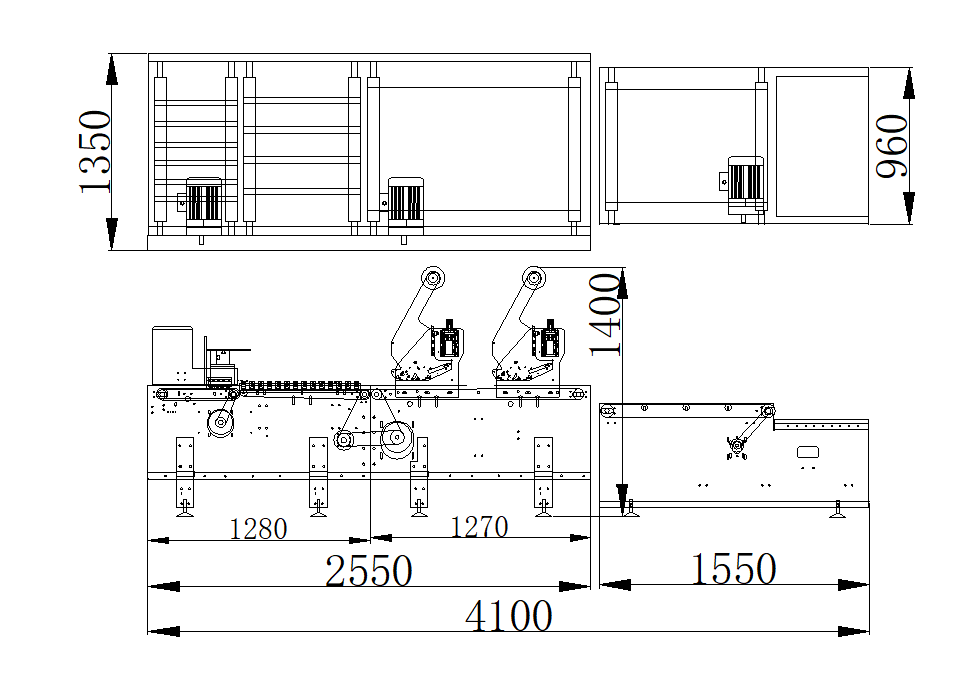

Machine size	4100mm×1150mm×1400mm	4100mm×1350mm×1400mm
